SK hynix - NAND Storage - UFS - UD310A/210A
- UFS3.1: Version
- 64GB-512GB: Density
- 11.5x13x1.2mm: Chip Size
- 153FBGA: Chip Type
- UFS2.1: Version
- 64GB-256GB: Density
- 11.5x13x1.2mm: Chip Size
- 153FBGA: Chip Type
Application: Automotive
- Flash storage ideal for automotive applications.
- Employs 7th Gen. (176 Layers) 4D V-NAND with SK hynix’s NAND controller
SK hynix - NAND Storage - UFS - UD310A/210A
NAND Flash Storage Exclusively for Automotive Devices
SK hynix’s lineup of NAND flash goes beyond supporting only mobile applications to encompass automotive use.
SK hynix’s universal flash storage (UFS) for automotive systems employs state-of-the-art 7th Gen. (176 Layers) 4D V-NAND with its own NAND flash controller and the provided interfaces include 64GB~512GB UFS 3.1 and 64GB~256GB UFS2.1, all which meet JEDEC standards.

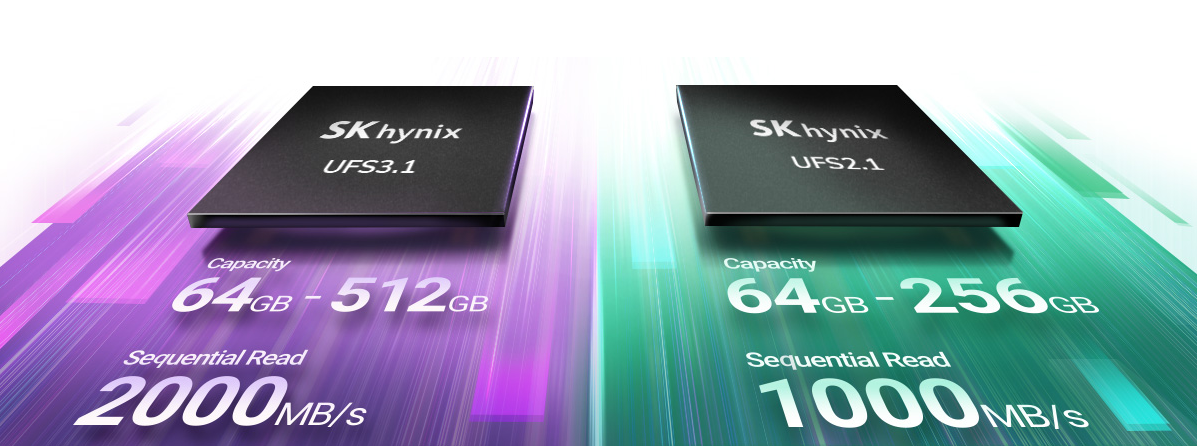

UFS Line Up for Automotive
SK hynix provides UFS3.1 and UFS2.1, which deliver superior performance that complies with JEDEC standards. Its UFS line-up comes in a wide range of capacities from 64GB to 512GB.
The Ideal Quality for Automotive Systems
SK hynix’s automotive UFS supports AEC-Q100 Grade2 and AEC-Q104 temperature requirements in light of a wide-ranging automotive environment.
In addition, development took place in compliance with A-SPICE standard to deliver better quality, and to ensure safety following the widespread use of autonomous vehicles, products align with ISO26262 Standard for Functional Safety, providing safety manuals and supporting H/W FMEDA, FMEA and DFA.
*A-SPICE: Automotive Software Process Improvement and Capability Determination
| Part No. | Density | Model Name | Mono-Density | PKG Size | PKG Type | Spec | Voltage(VCC/VCCQ) | Product Status |
| HN8T15DJHQX109N | 256GB | UD310A | 512Gb | 11.5x13x1.2mm | FBGA | UFS 3.1 | 2.5V / 1.2V | CS |
| HN8T039JHQX099N | 128GB | UD210A | 512Gb | 11.5x13x1.2mm | FBGA | UFS 2.1 | 3.3V / 1.8V | CS |
