Gigabyte Workstation Motherboard MW22-SE0 (Rev.1.0)

Intel® Xeon® E Processors

Delivering Essential Performance & Visuals For Your Workstation or Server

The “E” in Xeon E-2200 stands for “Entry”, as this single socket processor family is ideal for entry level workstation and server applications. The new generation, code named “Coffee Lake” and based on the “Mehlow” platform architecture, features up to 8 cores / 16 threads and has been described by Intel as providing up to 50% performance improvement on multi-threaded workloads compared with the previous E3-1200 V6 / V5 generation. The new generation features improvements in processor speed, enhanced memory capabilities, advanced hardware-enhanced security and reliability features.

Intel® Xeon® E-2200 Key Features

* 8 core CPU SKU supported only for MX32-4L0 / MW32-SP0 motherboards

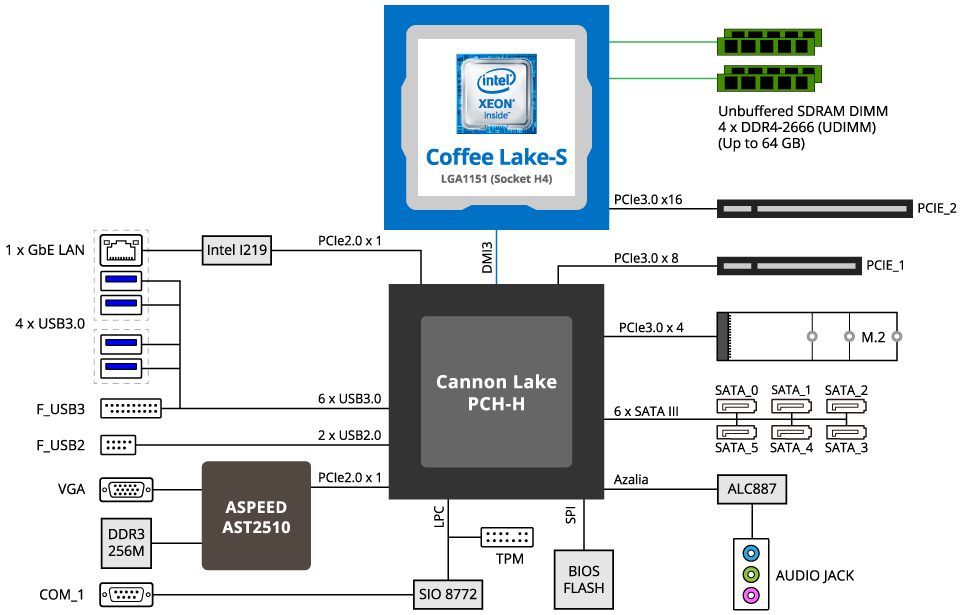

MW22-SE0 Block Diagram

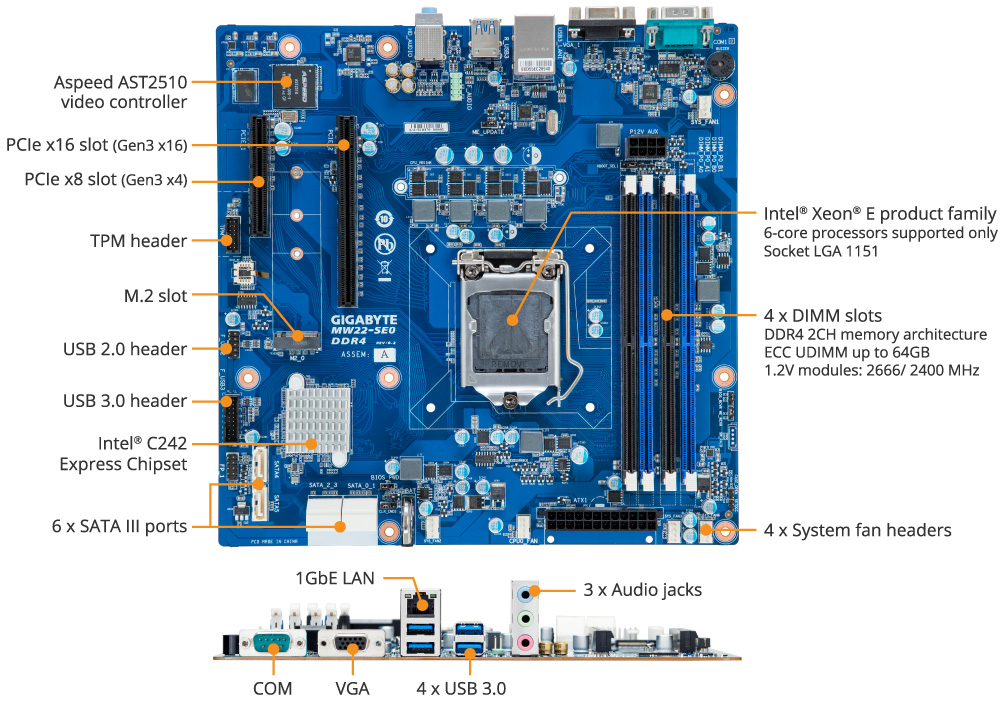

MW22-SE0 Product Overview

Dense Storage Support

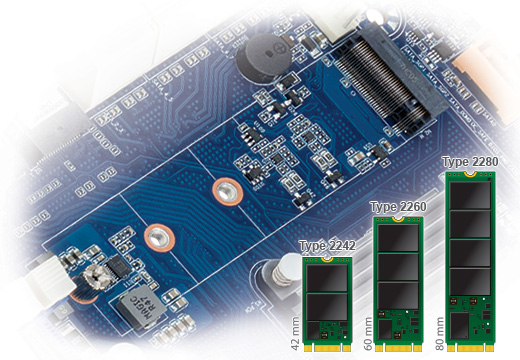

Onboard M.2 Slot

GIGABYTE’s Xeon E processor platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations, and freeing up other storage devices for normal compute tasks.

Delivering up to 32 Gb/s data transfer speeds through a PCIe connection, M.2 offers users considerably faster storage performance than current mSATA devices. Compliant with three different M.2 form factors.

 Supports NGFF-2280/2260/2242 cards

Carefully Selected Components

GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

GIGABYTE BMC Interface

Easy BIOS Upgrade

GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:

No need to install core components such as CPUs, memory, drives and OS

No need to power on the system (NB. PSU must be connected)

Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)

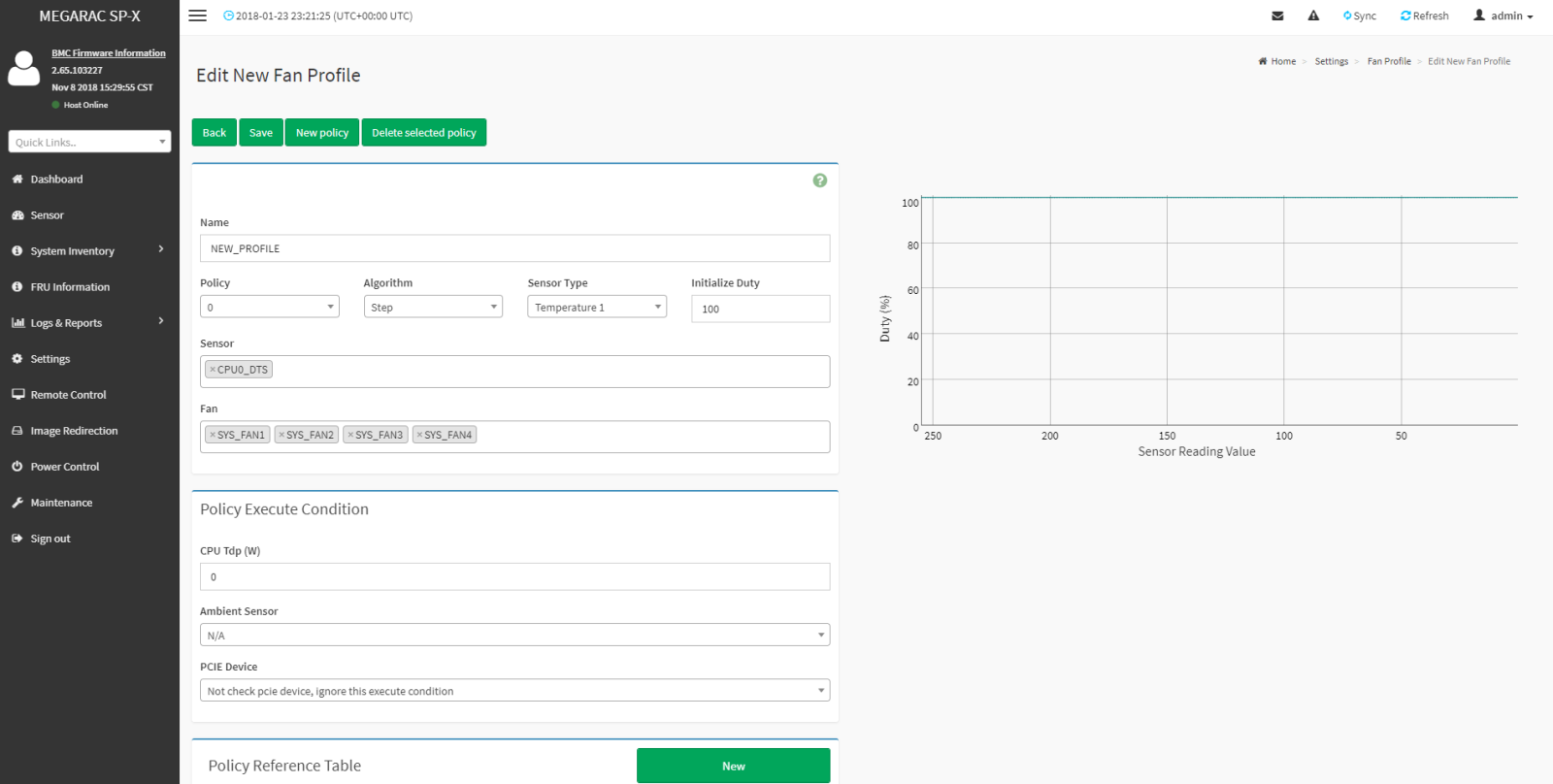

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI

Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
