GIGABYTE MU71-SU0 (rev. 1.x)

2nd Generation Intel^® Xeon^® Scalable Family Ready

GIGABYTE’s servers are fully ready to support the second generation of Intel^® Xeon^® Scalable Family processors, codenamed “Cascade Lake”, which bring the following major enhancements:

Intel^® Optane™ Persistent Memory: Built-in support for this revolutionary new product based on Intel’s 3D Xpoint technology

Overall Performance: Higher CPU frequencies, improved turbo profiles vs. prior-gen Intel Xeon Scalable processors

Increased DDR4 Memory Speed & Capacity: Up to 2933MHz (1 DIMM per channel on some SKUs), 16Gb based DIMM supported

Intel Deep Learning Boost: Significantly accelerates inference performance for deep learning workloads optimized to use VNNI (Vector Neural Network Instructions)

Security: Hardware mitigations for Meltdown / Spectre security vulnerabilities

Intel^® Xeon^® Scalable Family Processors

GIGABYTE’s Intel^® Xeon^® Scalable Processor family servers are available in dual socket configurations, and are compatible with the full family* of different SKUs (Bronze, Silver, Gold and Platinum) that are workload optimized to support different applications, from enterprise IT database, cloud and storage to the most high-demand HPC workloads.

* SKU compatibility will depend on the maximum CPU TDP supported for each system, please refer to each product’s specification page for further information

Advanced features built into the silicon include:

Intel^® QAT: Speed up data compression and cryptography with integrated Intel QuickAssist Technology (QAT).

Intel^® AVX-512: Intel Advanced Vector Extension 512 instruction set architecture enables workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.

Intel^® VROC: Intel Xeon Scalable Processors come with built-in support for Intel VROC (Virtual RAID on CPU). And GIGABYTE Intel Xeon Scalable NVMe SKU servers all ship with an Intel VROC module as standard.

Intel^® Omni-Path: Selected GIGABYTE servers support CPU SKUs with integrated Intel Omni-Path Fabric connection

Compute

Up to 28 cores / 56 threads per socket

Up to 38.5 MB L3 cache (non-inclusive)

Up to 3x UPI socket interconnects @ 10.4 GT/s

CPU TDP 70W – 205W

Memory

6 channels, 2 DIMMs per channel

Up to 12 DIMMS per socket

Up to 2933MHz max memory speed

Intel Optane Persistent Memory ready

I/O

48 PCIe 3.0 lanes per socket

Intel^® Optane™ Persistent Memory Ready

GIGABYTE’s second generation Intel^® Xeon^® Scalable family servers come ready to support Intel^® Optane™ Persistent Memory, a revolutionary new product that re-defines traditional memory & storage architectures by enabling a large persistent memory tier between DRAM and SSDs, that’s higher capacity than DRAM and faster than SSDs, enabling the user to bring more data closer to the CPU for faster time for insight.

Optane Persistent Memory Modules (“PMem”) integrate seamlessly into existing DDR4 DIMM slots, and use Intel’s 3D Xpoint memory technology, which unlike DRAM retains data after power is removed. The modules will be available in capacities up to 512GB – a massive increase compared to the current maximum 128GB of industry-leading DDR4 memory sticks – and can be addressed by the OS or application either as memory (Memory Mode) or storage (Application Direct Mode).

Note: the maximum number of Intel^® Optane™ PMem that can be installed per system and the DIMM slot positions that can be used for PMem will vary according to each server model due to thermal considerations. Please refer to each product’s specification page for further instructions.

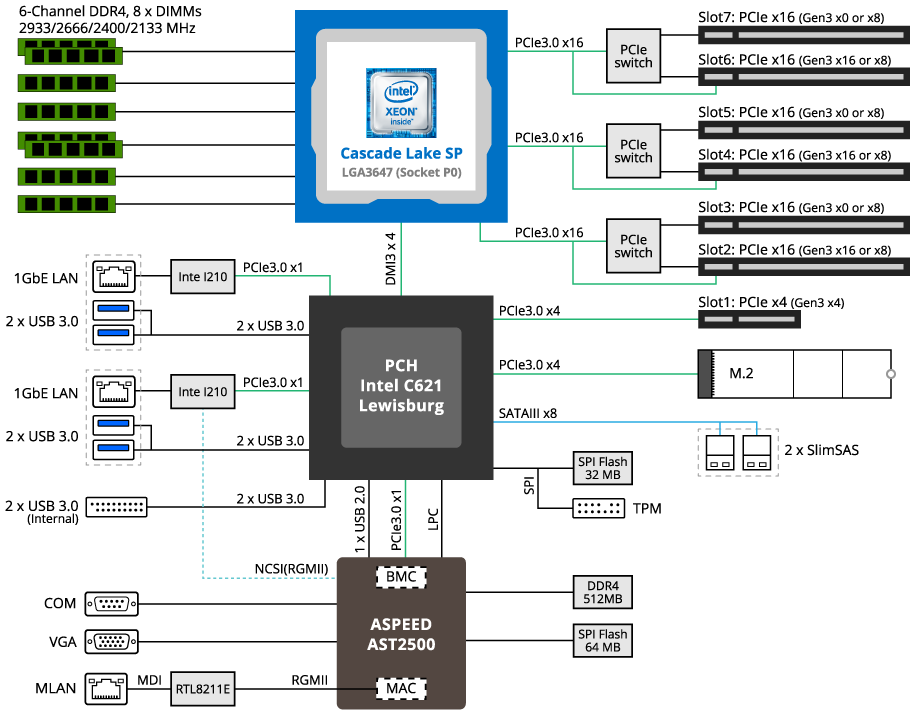

MU71-SU0 Block Diagram

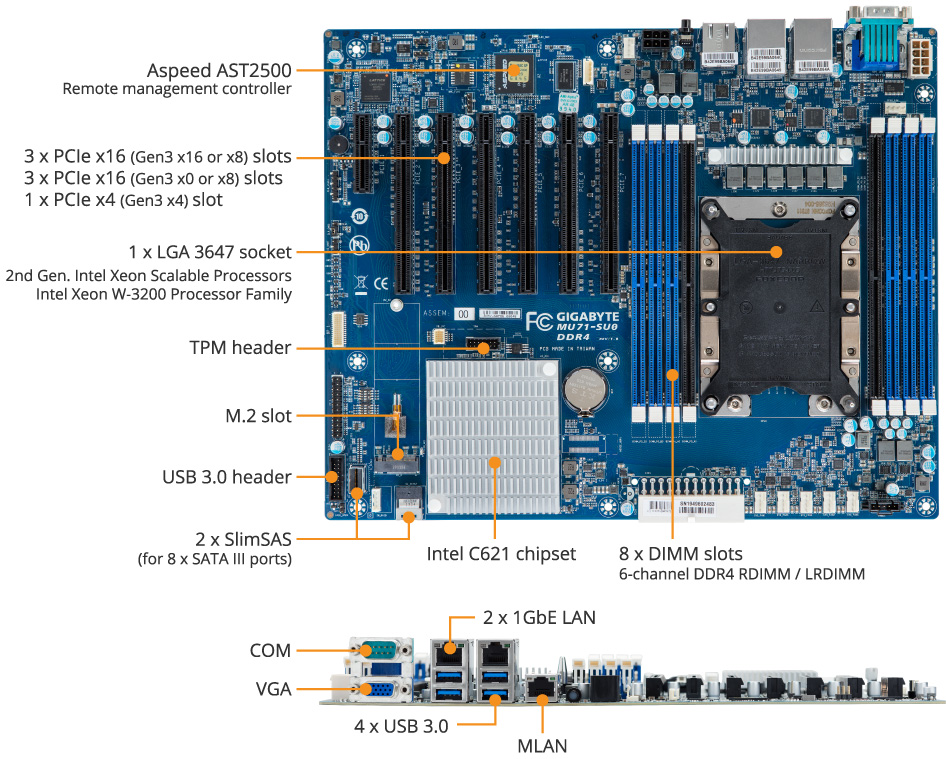

MU71-SU0 Product Overview

Dense Storage Support

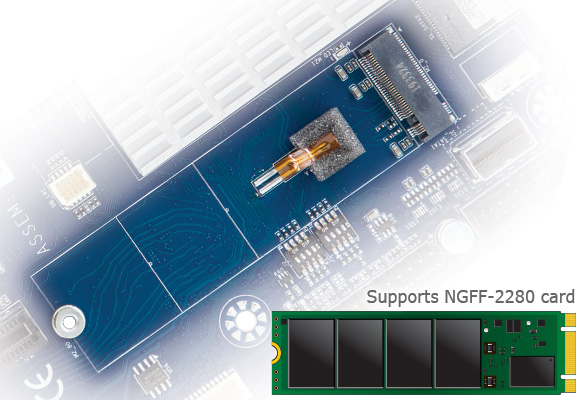

Onboard M.2 Slot

GIGABYTE’s Xeon Scalable processor platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations, and freeing up other storage devices for normal compute tasks.

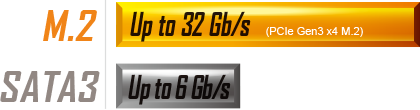

Delivering up to 32 Gb/s data transfer speeds through a PCIe connection, M.2 offers users considerably faster storage performance than current mSATA devices. Compliant with three different M.2 form factors.

Carefully Selected Components

GIGABYTE’s passive components are carefully selected to guarantee a stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with long lasting components for a high degree of reliability and durability.

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE’s proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish connection interfaces, and comprises the following sub-programs:

GSM Server
A software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.

GSM CLI (GBT Utility)
A command-line interface program to enable global remote monitoring and management of multiple GIGABYTE servers via each server node’s BMC.

GSM Agent
A software program installed locally on each GIGABYTE server node that retrieves additional node information (CPU/Mem/HDD/PCI/…) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.

GSM Mobile
A remote server management mobile APP, available for both Android and iOS.

GSM Plugin
A plugin that allows the user to manage and monitor GIGABYTE server nodes within VMware’s vCenter.

Intuitive & Informative User Interface

Starting from the GSM Server dashboard, the user can clearly understand the status of each node in the IT environment, including:

Node connection status (system is online/offline)

Node hardware sensor status (to detect hardware anomalies). Sensors measure voltage, fan speed and temperature

Node usage rate status (allowing you to timely allocate more resources when they are needed), including:

Power consumption

Disk/RAID usage information

Memory usage rate

CPU usage rate

Network card / PCI information

The user can also perform various management functions, including:

Node remote access

Power on / off / reset

Launch iKVM

Reboot BMC / BMC Account Configuration

Network Configuration

IPv4/IPv6 setting

Alert Management

SNMP trap setting

Platform events filters

Forwarding alerts by email

BMC / BIOS / CPLD Update

Power Consumption Limit Setting

Group Management

Create groups of nodes for BMC / BIOS update or manage power consumption settings

GSM Mobile for iOS and Android

A GSM Mobile app is available for download for both iOS and Android mobile phones for remote server management on the go.

 Download GSM APP for iOS Download GSM APP for Android
(Google Play Store)

(iOS Store)

Management through VMware vCenter

A GSM Plugin is available for VMware’s vCenter, allowing the user to perform remote monitoring and management of GIGABYTE server nodes without having to switch to a separate software platform.

GIGABYTE Management Console

GIGABYTE server utilizes the AMI MegaRAC SP-X solution for BMC server management, has a browser-based graphical user interface, and is feature-rich and easy to use.

RESTful API support includes the latest DMTF standard of Redfish. Allows integration with 3rd party applications for server management

Including HTML5 based iKVM remote management client, no need to purchase other additional licenses

Detailed FRU information from SMBIOS

10 to 30 seconds pre-event automatic recording function

SAS / RAID controller monitoring function

Dynamic Fan Speed Control

GIGABYTE servers are enabled with dynamic fan speed adjustment. Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited* when necessary according to the user’s custom requirements.

* Enabled on selected models & performed through BMC console management GUI

Environmental Compliance

GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).

VMware Technology Alliance Partner

Being a member of VMware's Technology Alliance Partner (TAP) program enables GIGABYTE to rapidly develop and certify joint solutions or go-to-market products that leverage VMware virtualization and cloud solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

Enquire with your GIGABYTE sales representative for more information about combining or integrating this server product with VMware solutions.
